Product Paramenters:
Outdoor insulated wall panels can prevent the spread of flame in the early stage of fire, with stability and safety.
| Product name |
Outdoor insulated wall panels |
| Thickness | 9mm, 14mm, 16mm, 20mm, 25mm, 30mm |
| Width | 38.3cm |
| Length | 1-6000mm |
| Surface layer | Galvanized steel sheet |
| Steel coating | HDP, >30µm |
| Core materials | Polyurethane, 42kg/m³ |
| Closed cell rate | >95% |
| Bottom material | Aluminum foil |
| Thickness of bottom material | 0.26mm |
| R-VALUE | 0.55㎡*k/w |
| Heat conductivity | 0.024w/m*k(in theory) |
| Heat conductivity | 0.024w/m*k(in theory) |
| Certificate | ISO9001,CE |
| Fire resistance level | B1/B2 |
| Size tolerance | =/-2mm |
| Tensile bond strength | 0.17MPA |
| Wind load value | 9KPA |
| Package | corrugated box, 10 pieces/carton |
| Package size | Length(0-6m)*Width42mm*Height(90mm-300mm), (10 pieces per carton) |
| Container load | 20GP: 1600sqm(length of panel is 1.82m); 40HC/HQ: 3800 sqm (length of panel is 3.8m). |
| Warranty | ＞5years |
| After-sale service | Respond quickly, communicate patiently, proactively solve problems and provide technical support. |
| Port of loading | Qingdao, Tianjin, Ningbo, Shanghai,Shenzhen,Guangzhou. |
It is widely use in many fields like the following:
Due to its excellent thermal insulation properties, outdoor insulated wall panels are often used in the construction of cold storage to ensure the storage conditions of refrigerated items.
Why choose us?
Production of exterior house cladding panels:
Manufacturing shop
FAQ
Q: Are you a trading company or a processing factory?
A: We have our own factory, located in Shandong.guaranteeing good quality and cheap price. And we have alot of partners, very many styles.
Q: What’s your payment terms?
A: T/T, Western Union, Bank transfer,PayPal payment and Trade Assurance.
Q: Can I place an sample order?
A: Sure,we support sample，We also often hold free sample activities, contact us, seize this opportunity.
Q: What about the quality?
A: Our company advocates high quality , so don’t worry about quality issues.
Packing & Shipping:

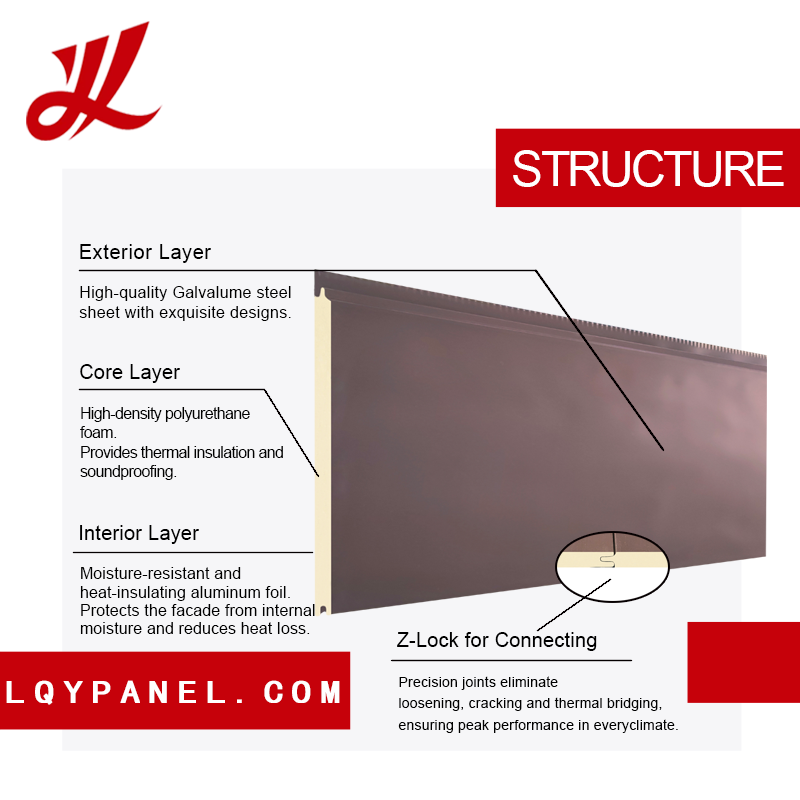

Polyurethane（PU） interior and exterior wall decorative insulation sandwich panels
Category：Polyurethane sandwich panel
Category：Polyurethane sandwich panel

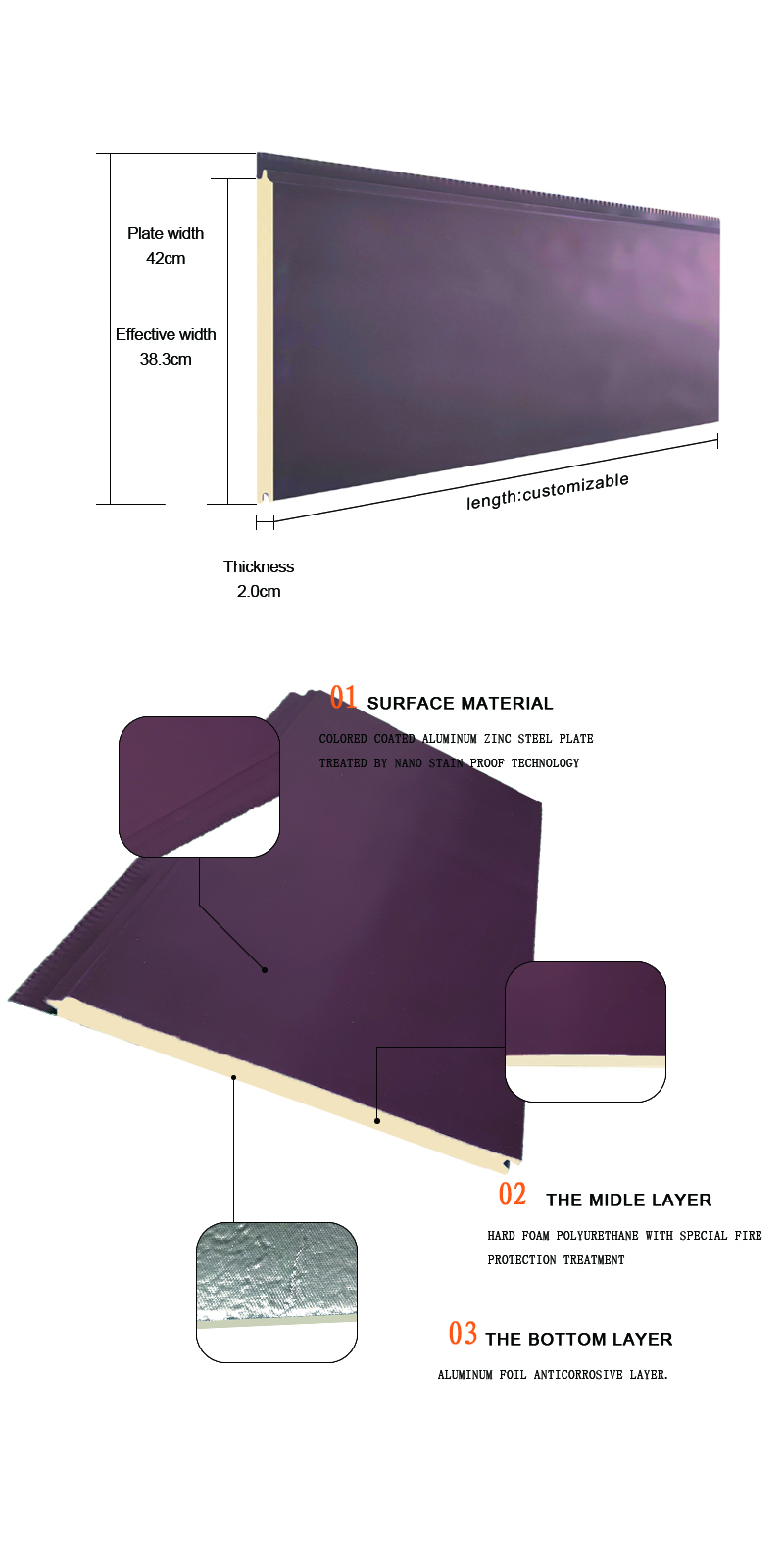

Panel practical width: 38.3cm
Panel length: 2000 ≤ L ≤ 15000
Panel thickness: 14, 16, 20, 25, 30, 50, 70mm
Top material: aluminum zinc plated steel plate 0.25mm
Core materials: PU, EPS, XPS
Bottom material: aluminum foil paper, aluminum zinc coated steel plate 0.25mm
Product Paramenters:
| Name | Polyurethane Sandwich Panel |
| Function | Waterproof, fast installation, eco-friendly, thermal insulation, sound insulation, durable, 3D pattern |
| Standard Size | Length: 3800mm/5800mm*Width: 383mm* Thickness: 14-25mm |
| Usage | Interior and exterior walls and ceiling decoration insulation |
| Surface Material | Galvalume steel plate |
| Core Material | Polyurethane,42kg/m³ |
| Bottom Material | Aluminum foil insulation layer |
| Metal thickness | 0.23-0.27mm |
| Product weight | 3.7kg/㎡ |
| Package | （0-6000mm）*44mm*165mm(10 pieces/carton) |
| Container Capacity | 20GP:1200㎡=12912 sq.ft(panel length:5800mm) |
| 40GP:2800㎡=30128 sq.ft(panel length:3800mm) | |
| 40HQ:3000㎡=32280 sq.ft(panel length:3800mm) | |
| R-VALUE | 0.55 mk/w |
| Heat conductivity | 0.024 w/m*k(in theory) |
| Certificate | ISO9001,CE |
| Fire resistance level | B1/B2 |
| Tensile bond strength | 0.17MPA |
| Wind load value | 9KPA |
| After-sale Service | Online traing,online technical support |
| Port | QINGDAONingboTianjin |
| Payment | L/CWestern UnionD/PD/AT/TMoneyGram |
| Brand | lqypanel |
Color and Pattern Introduction:
LQYPANEL sandwich panels have over 1000 patterns. The dreamy decorative effect highlights the grade of the building. The simple and flexible disassembly and assembly of these metal side lines make it easy to replace wall designs. Metal wall panels are not only suitable for thermal insulation decoration of new brick concrete structures, frame structures, steel structures, and lightweight exterior walls of buildings, but also for energy-saving renovation of existing buildings and internal and external decoration.
Customer instance：
FAQ
1. Q:Are you a manufacturer or a trading company?
A: We are a sandwich panel manufacturer with 15 years of professional experience in this field.
2. Q: What is your minimum order quantity?
A:100 square meters.
3. Q: delivery date?
A: According to your quantity. Taking 40HQ as an example, the goods will be delivered within 15 days after the advance payment.
4. Q: Are samples are available, are they free?
A:Yes, the samples are free, but you need to pay for shipping. If you order products from us, the shipping cost will of course berefunded to you.
5. Q: What if we still need accessories?
A: U-shaped groove base, inner and outer corners, aluminum profiles and other accessories can be provided.
6. Q: What are your payment terms?
A:T/T proforma invoice has 30% deposit, and the balance before shipment is 70%.
7. Q:What are the main pattern options?
A: Brick pattern,elastic paint pattern,granite pattern,stone pattern,mosaic pattern,tile pattern,long stone pattern,marble pattern,flat pattern,wood pattern and etc.
The reasons for choosing polyurethane sandwich panels are as follows:
Excellent insulation performance: With a low thermal conductivity, polyurethane sandwich panels can effectively inhibit temperature fluctuations and maintain stable interior temperatures.
High safety: Polyurethane sandwich panels are non-flammable, do not produce open flames, and will not release harmful gases when exposed to fire sources. Good impact resistance and durability.
Good cost-effectiveness: Although the unit cost of polyurethane is higher than some traditional insulation materials, its excellent insulation performance can reduce heating and cooling costs, offsetting the additional material cost.
Fire resistance: Polyurethane is flame-retardant and self-extinguishing. It has a softening point above 250 degrees Celsius and will only decompose at high temperatures. Additionally, it forms carbon on its surface when burned, helping to isolate the fire and prevent its spread.
Moisture resistance: The closed-cell structure of polyurethane has a moisture barrier effect, with a water absorption rate lower than 1%. It is a moisture-resistant material that will not be damaged by moisture or water penetration.
Therefore, polyurethane sandwich panels are an ideal choice for applications such as refrigerated vehicles, building insulation, and others requiring high insulation performance, safety, and durability.
